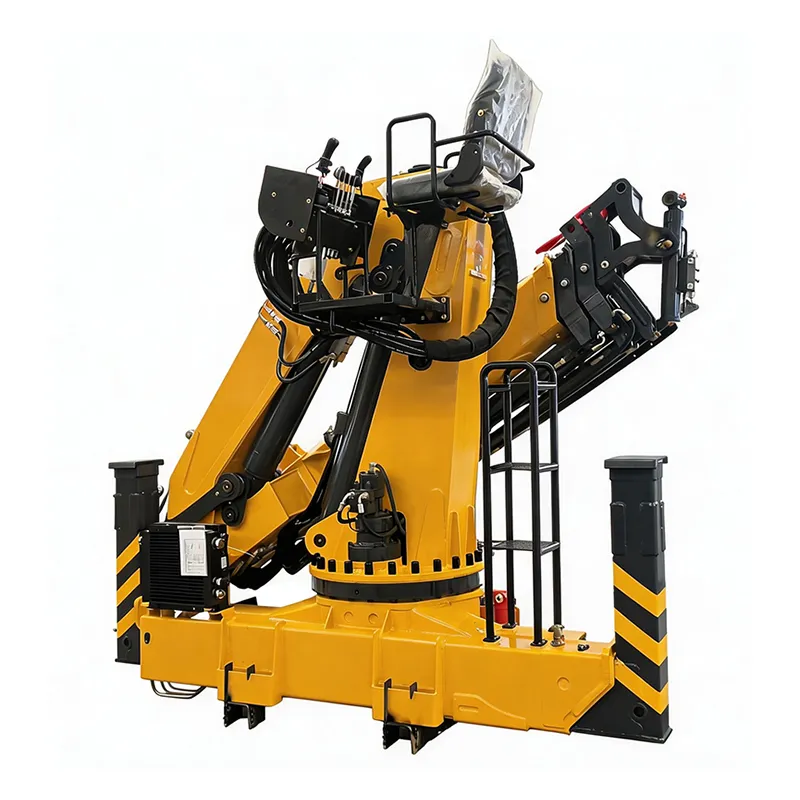

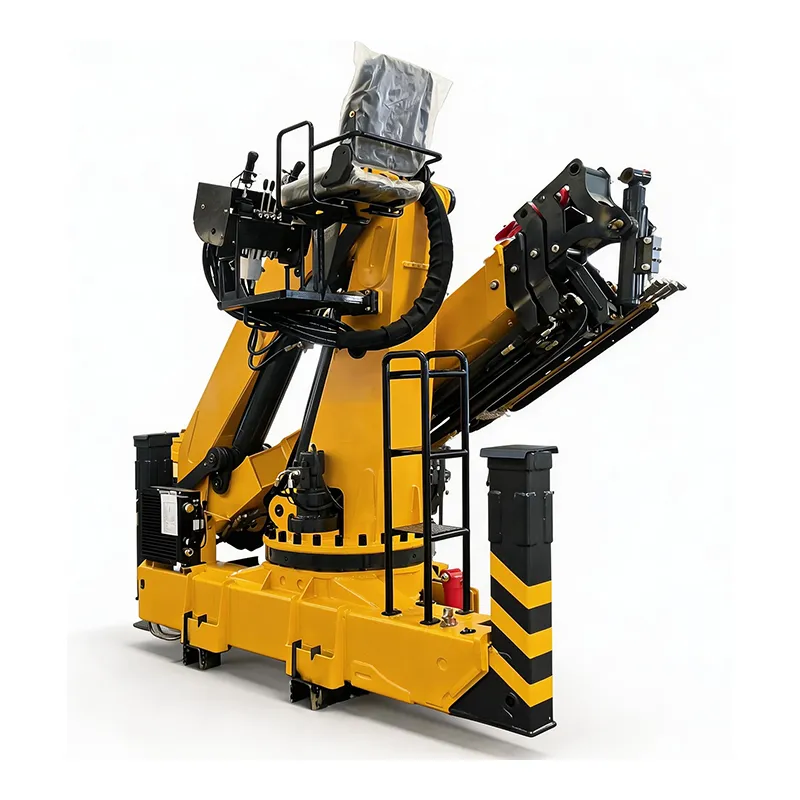

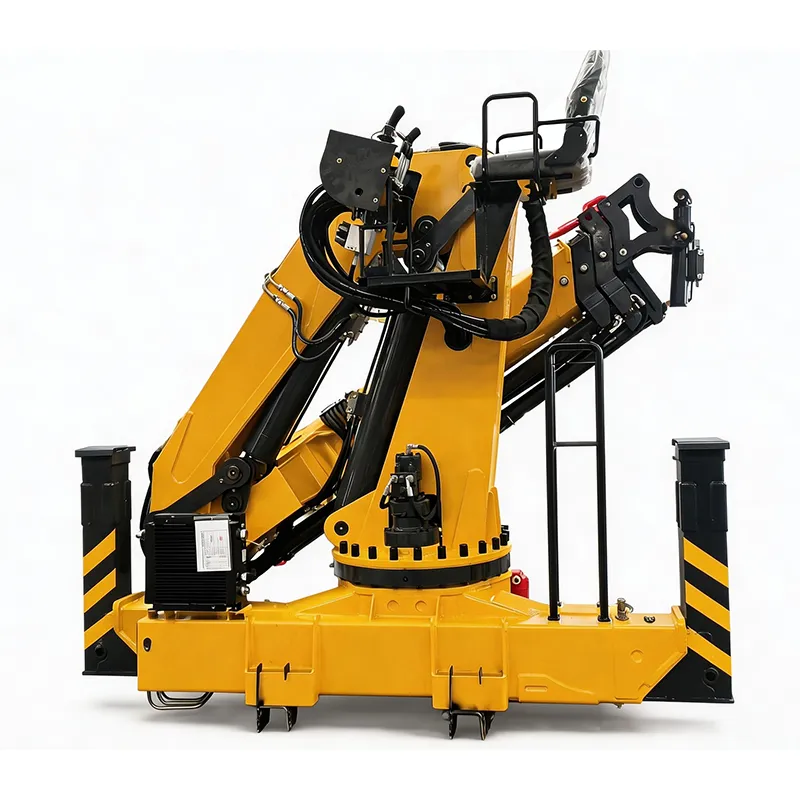

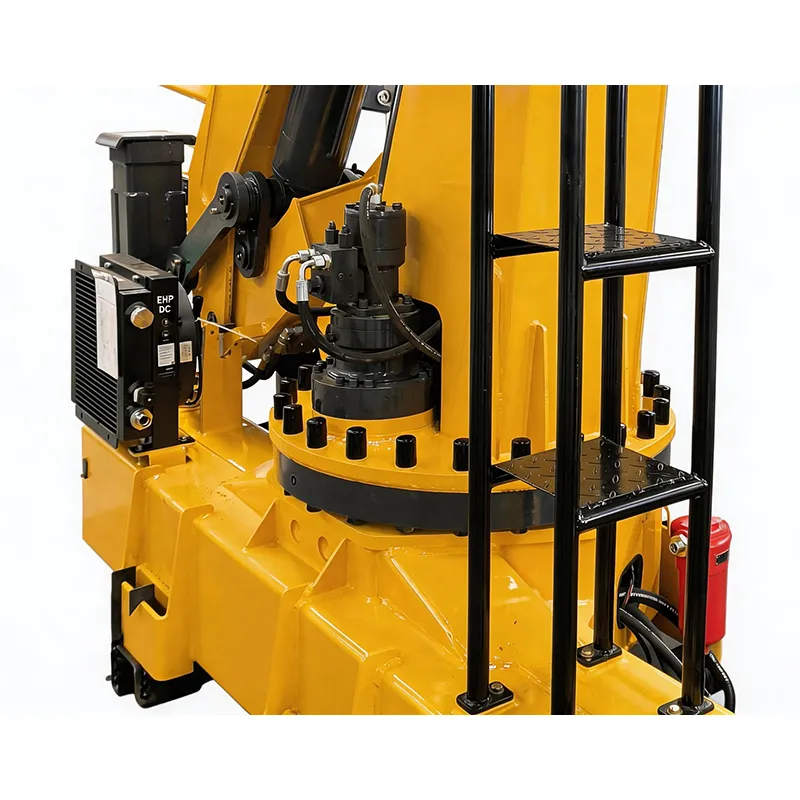

ZBS-8 8 Ton Articulated Loader Crane for Construction and Material Handling
8 ton knuckle boom crane delivers 16 ton-meter lifting moment, 390° rotation, and stable hydraulic performance for demanding truck-mounted operations.
1. High Lifting Capacity and Strong Moment Output
2. Reliable Hydraulic System Performance
3. Wide Rotation Range for Flexible Operation
4. Durable Structural Design for Long Service Life
Description
The 8 ton hydraulic knuckle boom crane is designed to deliver reliable lifting performance for medium-duty truck-mounted material handling and construction applications. With a maximum lifting capacity of 8,000 kg and a lifting moment of up to 16 ton-meters, it provides the strength required for handling construction materials, machinery, pallets, and equipment efficiently. Its optimized boom structure ensures excellent load distribution and stability, allowing safe operation across various working conditions.
Built with high-strength structural steel and reinforced load-bearing components, the crane offers excellent durability and long service life even under demanding industrial conditions. It is widely used by construction contractors, logistics companies, equipment rental providers, and fleet operators for loading and unloading building materials, transporting machinery, infrastructure maintenance, and general cargo handling. Its dependable performance and adaptable installation make it an ideal lifting solution for commercial trucks, OEM integration, and export distribution markets.
SPECIFICATION
-
Max. Lifting Weight: 8000 Kg
-
Max. Lifting Moment: 16 Ton.m
-
Max. Working Radius: 7.85 M or 9.7 M or 11.4 M or 15.7 M
-
Recommend Power: 30 Kw
-
Hydraulic System Flow: 45 L/Min
-
Hydraulic System Pressure: 28 Mpa
-
Oil Tank Capacity: 150 L
-
Rotation Angle: 360° Continuous rotation
-
Crane Self Weight: 2730 Kg or 2970 Kg or 3190 Kg or 3900 Kg
-
Installation Space: 1200 mm or 1350 mm
-
Outrigger Span: 5230 mm
