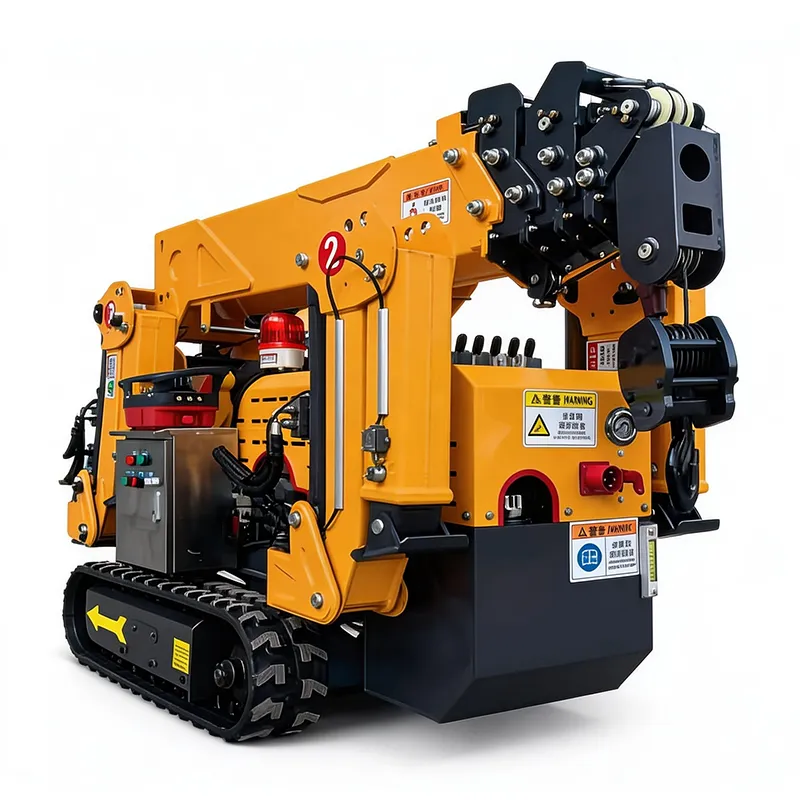

ST150 1.5-ton Mini Crawler Spider Crane
Spider crane for construction and industrial lifting. SANSCM manufacturer provides reliable customized equipment and stable global supply
1. Compact design for restricted spaces
Small footprint and strong accessibility, suitable for indoor areas, plants, rooftops, and confined jobsites.
2. Independent outriggers with high stability

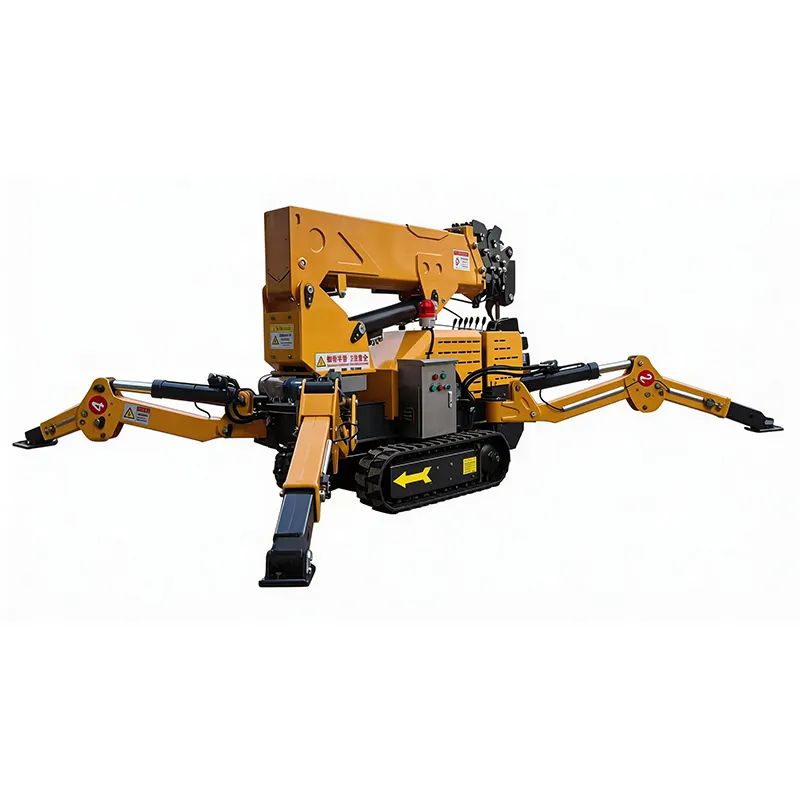

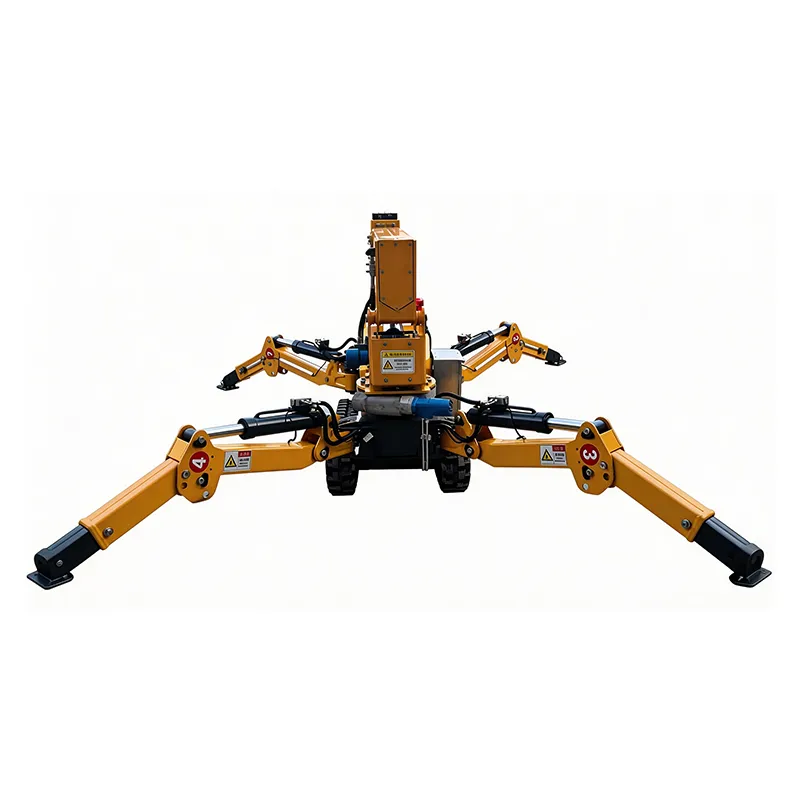

Each outrigger can be adjusted separately and positioned asymmetrically to adapt to uneven or complex ground conditions.
3. Precise micro-control for delicate lifting
Smooth operation and accurate positioning, ideal for equipment installation and high-value component handling.
4. Multiple power and configuration options
Various power types and functional setups available to match different indoor and outdoor project needs.
5. Flexible deployment with low overall cost
Easy transport and quick setup, efficient for multi-site and continuous operations.
Description

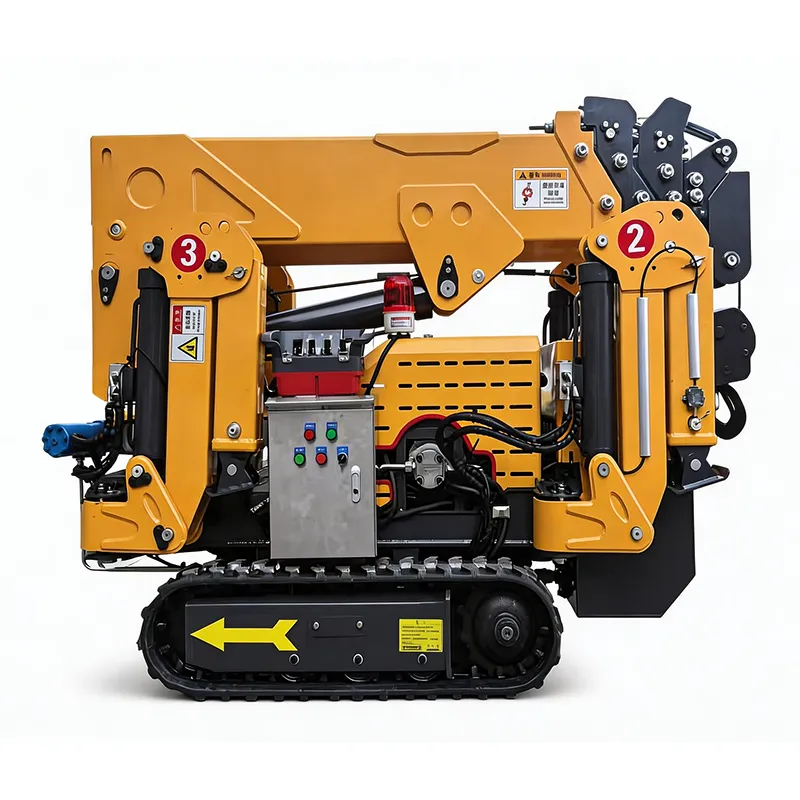

Light lifting operations frequently take place in confined areas where conventional cranes cannot access, and precise positioning is critical for installation efficiency and safety. The 1.5 Ton Spider Crane is engineered with an ultra-compact crawler chassis and multi-position hydraulic outriggers, allowing the machine to pass through standard doorways and deploy safely on uneven or restricted job sites.
For indoor and sensitive environments, the crane features non-marking rubber tracks to protect finished floors such as marble, tile, or epoxy surfaces. The available dual power system (diesel and electric) allows zero-emission indoor operation, making it ideal for glass installation, equipment placement, steel structure assembly, and maintenance work.
With fast deployment and minimal setup requirements, the 1.5 ton spider crane reduces reliance on large lifting equipment and manual handling, improving lifting efficiency while lowering labor costs and project downtime.
SPECIFICATION
| Specification | 1.2t | |
| Max working radius | 5m×0.3t | |
| Max ground lifting height | 5.8mX0.8t | |
| Winch device | Hook speed | 0-8m/min |
| Rope type | Φ8mm×35m | |
| Telescopic device | Boom type | 4-section boom, U-shaped high- strength manganese |
| Boom length/time | 1.7m-5m/22sec | |
| Undulating device | Boom angle/time | 0-75°/13sec |
| Gyratory device | Boom angle/time | 0-360° ( continuous) /60sec |
| Outrigger | Operating type | Manual unscrewing + hydraulic automatic support |
| Max extendeddimensions (mm) | Length 3800Xfront/back3000 | |
| Walking system | Walking type | Hydraulic motor drive, two-speed |
| Walking speed | 0-2.5km/h | |
| Gradeability | 20°(36%) | |
| Motor | Voltage | AC380V |
| Starting method | Electric | |
| Start performance | -5°C~40°C | |
| Capacity | 8L | |
| Battery capacity | 12v 45AH | |
| Fuel consumption | 274g/kW-h | |
| Noise standard | Rated speed≤81.5dBA (1m) | |
| Emission Standards | Country II | |
| Operating system | Operating type | Manual operation, manual walking + remote control |
| Operating feature | Comai hydraulic system (optional) | |
| Standard configuration | Diesel engine and electric motor (dual power) | |
| Whole vehicle size | 2095 * 600* 1393mm |
