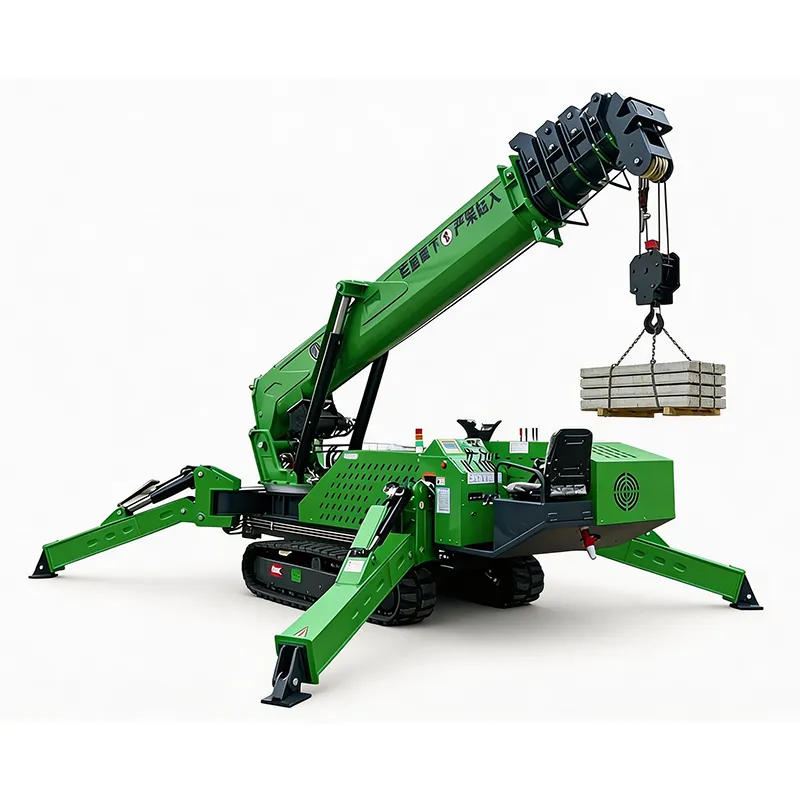

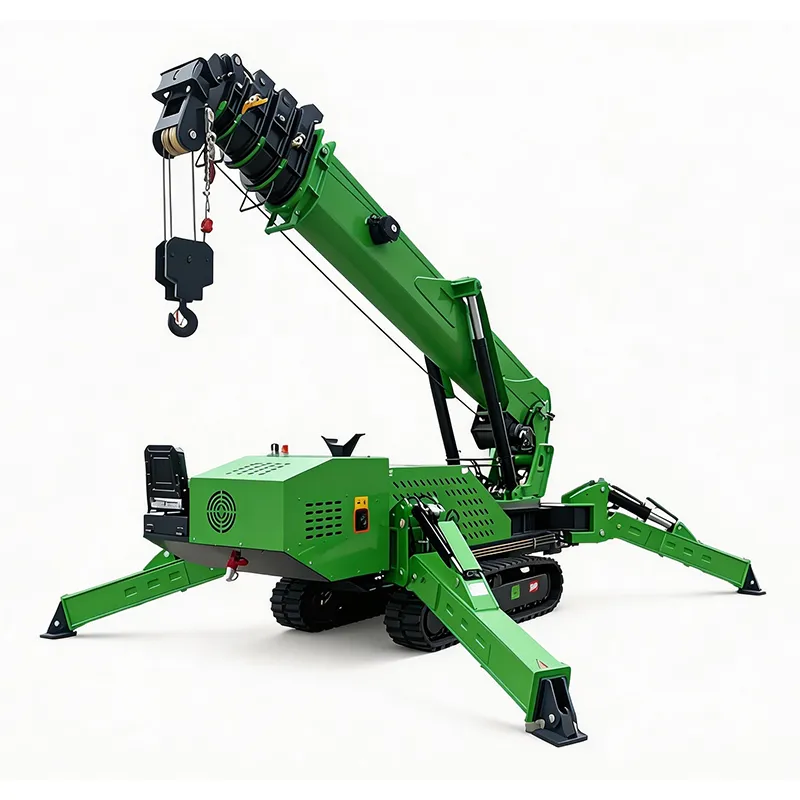

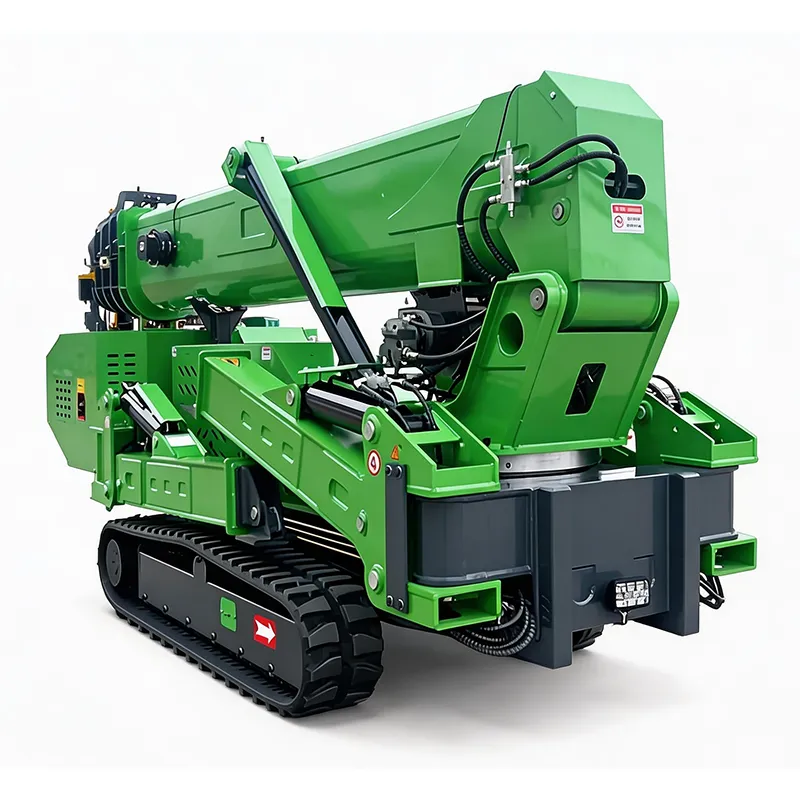

ST-800 8Tons Spider Crane for Precision Industrial Maintenance Lifting
The 8 ton spider crane is a heavy-duty mini crawler crane designed for industrial lifting in confined workshops and factories. Featuring a 380V electric power system, five-section U-shaped boom, and outrigger-boom interlock safety, it delivers high-strength, precise lifting for mold handling, equipment installation, and maintenance operations.
1. 380V Electric Power for Clean Indoor Operation
2. Five-Section U-Shaped Boom for Maximum Strength
3. Boom and Outrigger Interlock Safety System
4. Compact Structure for Industrial Narrow Access
Description
The 8 ton spider crane is a heavy-capacity mini crawler crane engineered specifically for industrial lifting in confined workshops, factories, and restricted job sites. Its compact body and foldable hydraulic outriggers allow the crane to pass through narrow entrances and deploy safely in tight production areas where conventional truck cranes cannot operate.
Powered by a 380V electric system, the crane delivers low-noise, zero-emission performance, making it ideal for indoor environments such as manufacturing plants, assembly lines, and equipment rooms. The five-section U-shaped telescopic boom provides superior structural strength and stability, enabling safe handling of heavy molds, machinery, and industrial components.
The crane features an advanced boom and outrigger interlock safety system, ensuring safe sequencing during operation and travel. Its crawler undercarriage provides stable positioning and smooth maneuverability across factory floors and uneven industrial surfaces.
SPECIFICATION
| Specification | 8t | |
| Max working radius | 16m×0.2t | |
| Max ground lifting height | 17mX0.9t | |
| Winch device | Hook speed | 0-10m/min |
| Rope type | Φ10mm×120m | |
| Telescopic device | Boom type | 5 section |
| Boom length | 4.5m-16m | |
| Undulating device | Boom angle/time | 0-75°/13sec |
| Gyratory device | Gyratory angle/time | 0-360°（continuous）/60sec |
| Outrigger | Operating type | Hydraulic automatic support +manual unscrewing |
| Max extended dimensions (mm) | Length 6300 Front/back4600 | |
| Walking system | Walking type | Hydraulic motor drive, two-speed (rubber track) |
| Walking speed | 0-5.5km/h | |
| Gradeability | 20°(36%) | |
| Motor | Voltage | AC380V |
| Engine | Brand | Yunnei |
| Type/displacement | YN27GBZ/2.7L | |
| Starting method | Electric | |
| Start performance | -5°C~40°C | |
| Fuel /capacity | Diesel /45L | |
| Battery capacity | 24v 45AH | |
| Fuel consumption | 230g/kW-h | |
| Noise level | Rated speed≤81.5dBA (1m) | |
| Operating system | Operating type | Manual operation, manual walking + remote control (optional) |
| Standard configuration | Diesel engine and electric motor (dual power) |
