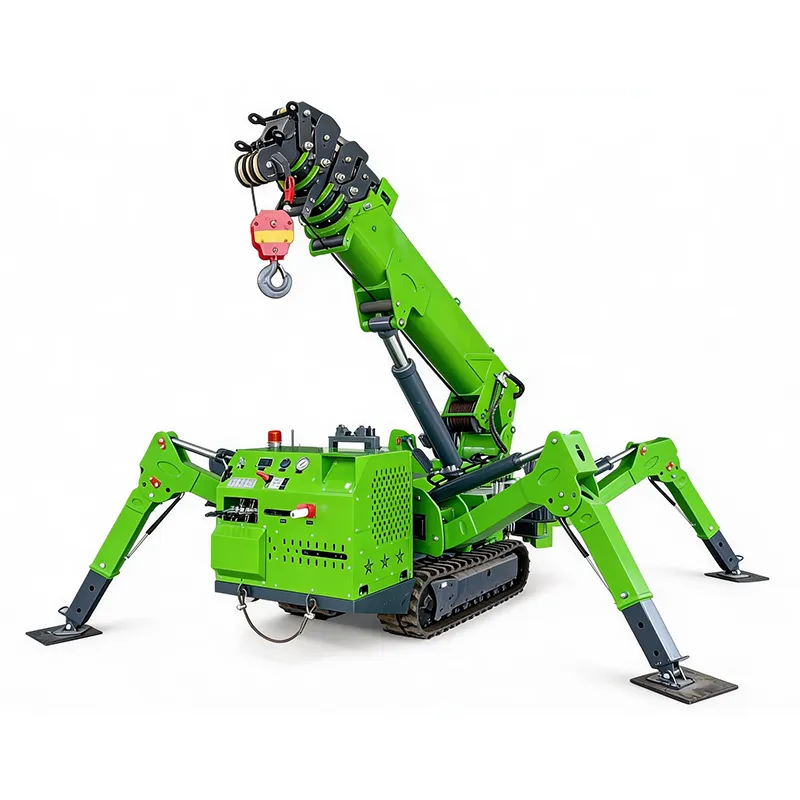

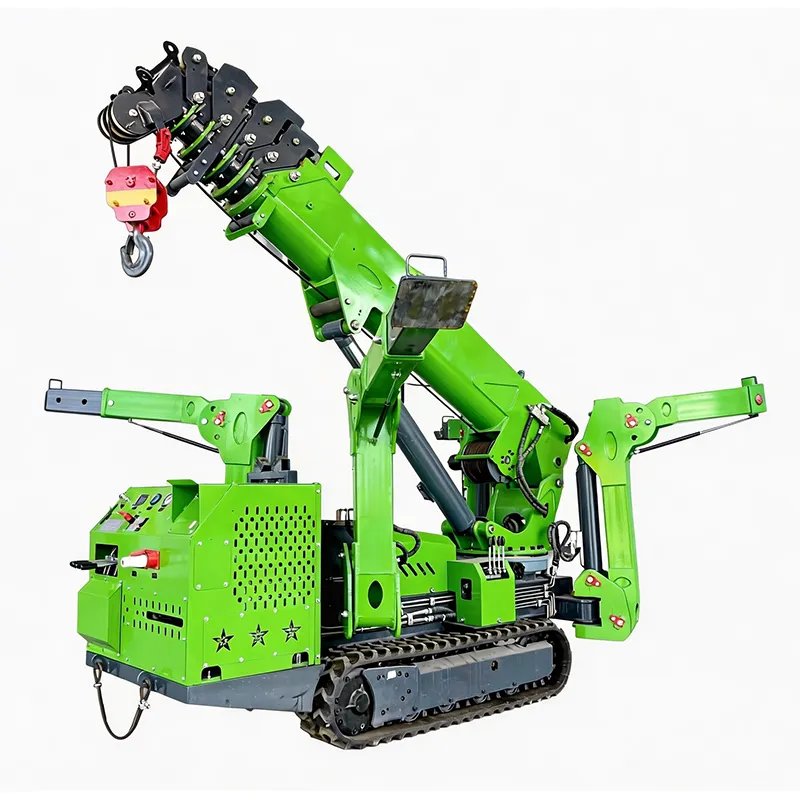

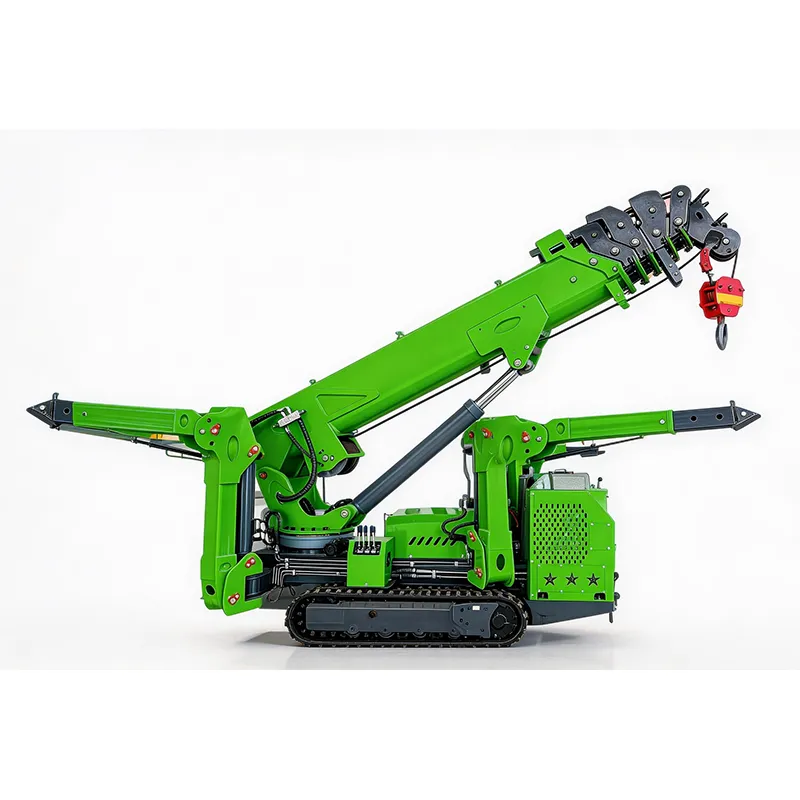

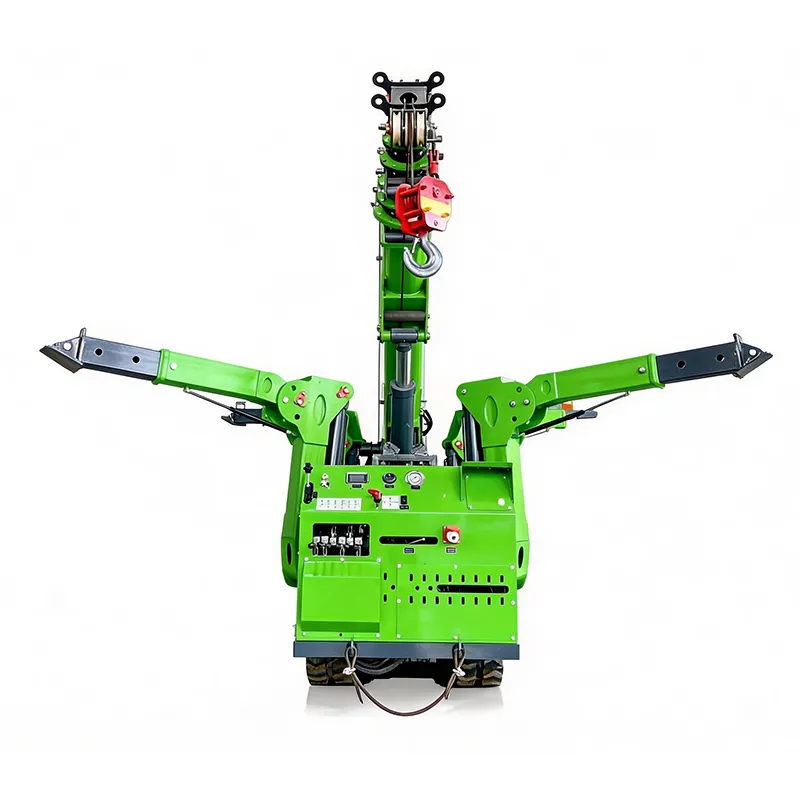

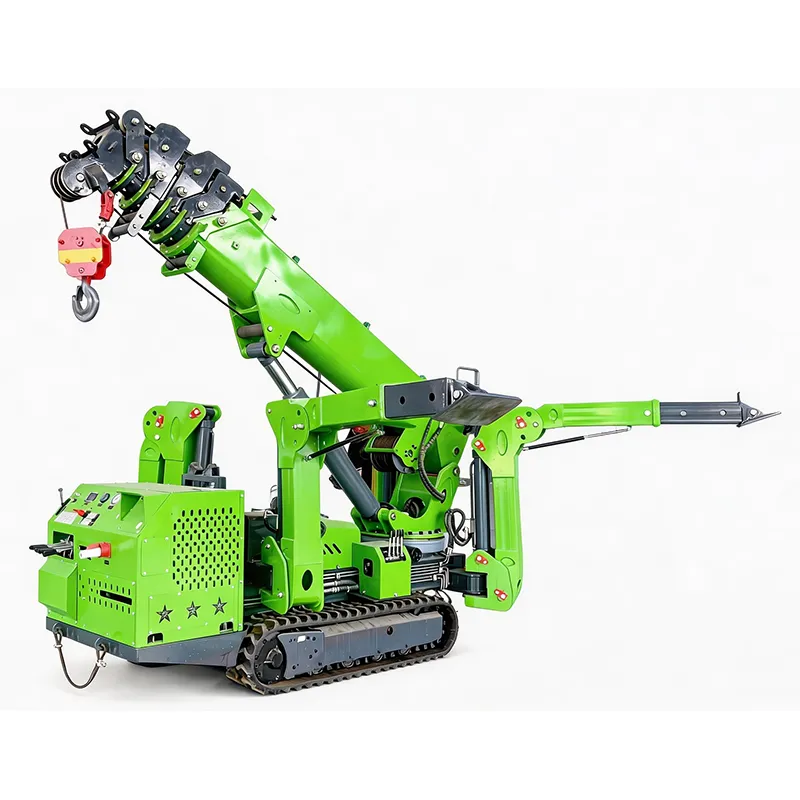

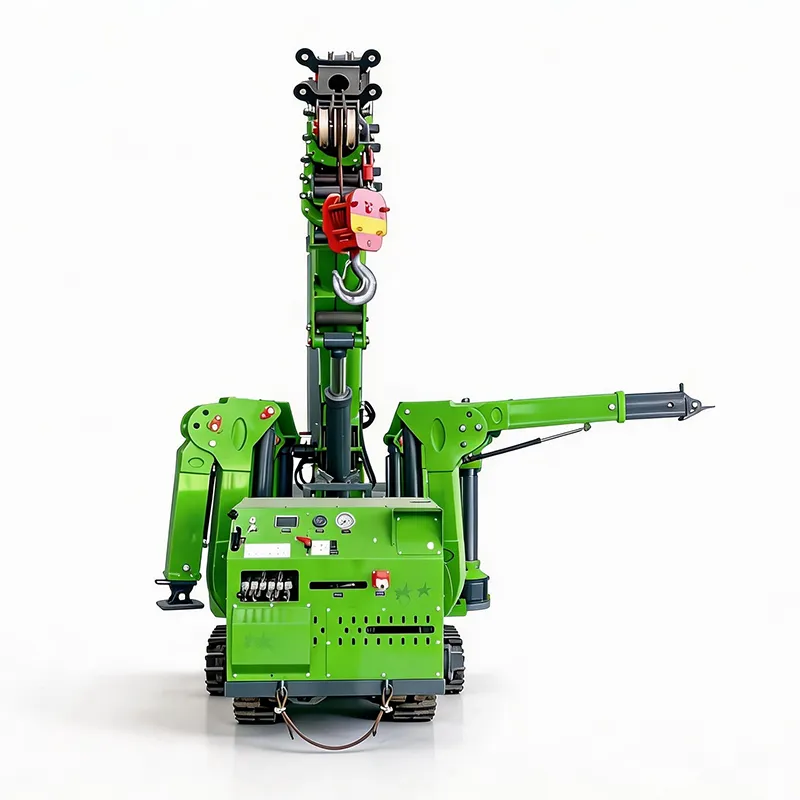

ST-300 3 Ton Spider Crane for Glass Installation and Indoor Lifting
The 3 ton spider crane features a compact crawler chassis and foldable outriggers, allowing access through narrow entrances and confined spaces. Equipped with a dual power system and proportional controls, it delivers precise, stable lifting for glass installation, equipment placement, and indoor or outdoor construction and maintenance applications.
1. Hydraulic Travel System with Two-Speed Contro
2. Powerful 3 Ton Lifting Performance
3. Extended Working Radius for Flexible Positioning
4. Heavy-Duty Winch with Multi-Line Rope System
Description
The ST-300 3 Ton Spider Crane is a compact mini crawler crane engineered for precision lifting in confined spaces where conventional cranes cannot operate. Designed for construction contractors, glass installation companies, industrial maintenance providers, and equipment installers, it provides reliable lifting performance while maintaining exceptional maneuverability.
Its ultra-compact crawler chassis allows the crane to travel through narrow access points such as standard doors, elevators, and interior corridors, making it ideal for indoor lifting, factory installation, and urban construction projects. The hydraulic multi-position outriggers with interlock protection ensure maximum stability on uneven ground, stairs, or restricted work zones.
The crane features a heavy-duty hydraulic winch with multi-line wire rope, delivering smooth and controlled lifting with a maximum capacity of 3 tons and lifting height up to 11.5 meters. The proportional remote control system allows operators to perform precise positioning safely, especially in glass curtain wall installation, steel structure assembly, and equipment placement.
With non-marking rubber tracks, strong climbing ability, and fast deployment capability, the ST-800 improves lifting efficiency while reducing labor costs and dependence on large cranes.
SPECIFICATION
| Specification | 2.95t | |
| Max working radius | 7.8m×0.2t | |
| Max ground lifting height | 9.2mX0.8t | |
| Winch device | Hook speed | 0-8m/min |
| Rope type | Φ8mm×45m | |
| Telescopic device | Boom type | 5-section boom, U-shaped high-strength manganese |
| Boom length/time | 2.8m-8.2m/22sec | |
| Undulating device | Boom angle/time | 0-75°/13sec |
| Gyratory device | Boom angle/time | 0-360°（continuous）/60sec |
| Outrigger | Operating type | Manual unscrewing + hydraulic automatic support (two legs) |
| Max extended dimensions (mm) | Length 4010Xfront/back3260 | |
| Walking system | Walking type | Hydraulic motor drive, two-speed |
| Walking speed | 0-2.5km/h | |
| Gradeability | 20°(36%) | |
| Motor | Voltage | AC380V |
| Engine | Brand | Changchai |
| Type | EV80/F195 | |
| Starting method | Electric | |
| Start performance | -5°C~40°C | |
| Fuel /capacity | Diesel /8L | |
| Battery capacity | 12v 45AH | |
| Fuel consumption | 274g/kW-h | |
| Noise standard | Rated speed≤81.5dBA (1m) | |
| Emission Standards | Country II | |
| Operating system | Operating type | Manual operation + remote control (optional) |
| Operating feature | Comai hydraulic system (optional) | |
| Standard configuration | Diesel engine and electric motor (dual power) | |
| Whole vehicle size | 28308001650mm | |
| Craftsmanship | Paint assembly process |
